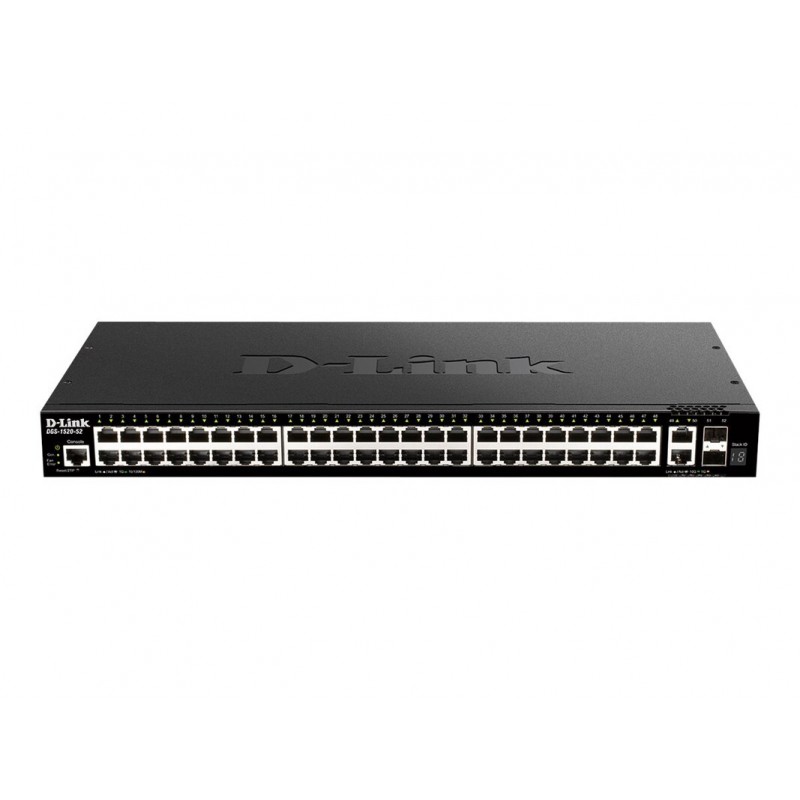

| Modelo | DGS-1520-52 |
| Hardware Version | A1 |
| Size | 19” standard rack , 1U |
| Interfaces | 48 x 10/100/1000Base-T Ports 2 x 10GBase-T Ports 2 x 10G SFP+ Ports |
| Standards | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic IEEE 802.3az Energy-Efficient Ethernet (EEE) IEEE 802.3x Flow Control IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3af/at IEEE 802.3bz |
| Media Interface Exchange | Auto or configurable MDI/MDIX |
| LED | Power/Stacking ID/Fan (per device) Link/Activity/Speed (per 10/100/1000 Mbps port, per 2.5G PoE port, per Gigabit SFP port, per 10G SFP+ port) |
| Functionality | |
| Switching Capacity | 176 Gbps |
| Transmission Method | Store-and-Forward |
| MAC Address Table | Up to 16,384 entries per device |
| Static MAC Addresses | Up to 512 static MAC entries |
| Maximum Forwarding Rate | 130.95 Mpps |
| PoE Standard | N/A |
| PoE Power Budget | N/A |
| Physical | |
| Power Input | 100 - 240 VAC |
| Maximum Power Consumption | 51.2 W |
| Standby Power | 25.5 W/100 V; |
| Consumption | 26.8 W/240 V |
| Acoustics | 56.8 dB(A) |
| Heat Dissipation | 174.6 BTU/hr |
| MTBF | 364888 Hours |
| Operating Temperature | -5 - 50°C (23 - 122 °F) |
| Storage Temperature | -40 - 70°C (-40 - 158 °F) |
| Operating Humidity | 10% - 95% RH |
| Storage Humidity | 5% - 95% RH |
| Dimensions (L x W x H) | 441 x 207.4 x 44 mm |
| Weight | 2.78 kg (6.13 lbs) |
| EMI | CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A |
